Magnum AFS Connect Series
Every day in farming brings new challenges and opportunities. The Magnum AFS Connect Tractor gives farmers in Uganda the freedom to work their way, make their own choices, and achieve success. Available in eight models with CVXDrive or PowerDrive transmission, in both wheeled and Rowtrac versions, these tractors deliver power, versatility, and reliability for any farming operation.
Magnum AFS Connect Series Tractors
Magnum Series tractors combine powerful engines, versatile transmissions, and robust hydraulics for high-performance farming operations in Uganda.
| Specification | 250 | 280 | 310 | 340 | 380 | 400 | 340 ROWTRAC | 380 ROWTRAC | 400 ROWTRAC |
|---|---|---|---|---|---|---|---|---|---|
| ENGINE | |||||||||
| Engine Type | Case IH FPT Tier 2, 6 Cylinders, Turbocharged & Intercooled | ||||||||
| Rated Power (kW/hp) | 184/250 | 206/280 | 229/312 | 250/340 | 279/379 | 291/396 | 250/340 | 279/379 | 291/396 |
| Rated Power with Power Management (kW/hp) | 210/286 | 232/315 | 255/347 | 276/375 | 305/415 | 276/375 | 305/415 | 301/410 | 320/435 |
| Max Torque (Nm/rpm) | 1229/1400 | 1381/1400 | 1531/1400 | 1671/1400 | 1850/1400 | 1850/1400 | 1671/1400 | 1850/1400 | 1850/1400 |
| Fuel Tank (litres) | 765 | 644 | – | ||||||
| TRANSMISSION | |||||||||
| 18×4 PowerDrive 40kph | Optional | Optional | Standard | Standard | NA | NA | Standard | NA | NA |
| 19×4 PowerDrive 40/50kph | Standard | Standard | Optional | Optional | NA | NA | Optional | NA | NA |
| 21×5 PowerDrive 40/50kph | – | Standard | NA | NA | Standard | NA | NA | ||
| CVXDrive Transmission | Optional | Optional | Optional | Optional | Standard | NA | Optional | Standard | NA |
| AXLES & 4WD | |||||||||
| Rear Axle Diff-Lock | Optional Electro-Hydraulic | ||||||||
| Front Axle Category | Cat.4.75 / Cat.5 Adjustable Spacing 1524-2388mm | ||||||||
| Suspended Front Axle | Optional | ||||||||
| Steering Angle (°) | 55 | ||||||||
| PTO | |||||||||
| Engagement | Electro-Hydraulic | ||||||||
| Speeds | Standard 540/1000 rpm | ||||||||
| Shaft Type | 1 3/8” 21 Splines / 1 3/4” 20 Splines | ||||||||
| HYDRAULICS | |||||||||
| Main Pump Flow (l/min) | 166 / 221 / 282 | ||||||||
| System Pressure (bar) | 210 | ||||||||
| Rear Max Lift Capacity (kg) | 6689 | 6689 | 11700 | 11700 | 10929 | 10929 | 11700 | 10929 | 10929 |
| Front Max Lift Capacity (kg) | 4070 (Optional Front Hitch) | ||||||||
| WEIGHT & DIMENSIONS | |||||||||
| Approx. Shipping Weight (kg) | 10,910 / 11,415 | 10,910 / 11,415 | 10,910 / 11,415 | 11,730 / 12,190 | 11,730 / 12,190 | 11,730 / 12,190 | 16,653 / 17,113 | 16,653 / 17,113 | 16,653 / 17,113 |
| Permissible Total Weight (kg) | 17,530 / 17,850 | 17,530 / 17,850 | 17,530 / 17,850 | -18,000 | -18,000 | -18,000 | 24,500 | 24,500 | 24,500 |
Why Choose the Magnum AFS Connect Series at AGRISERV Uganda?

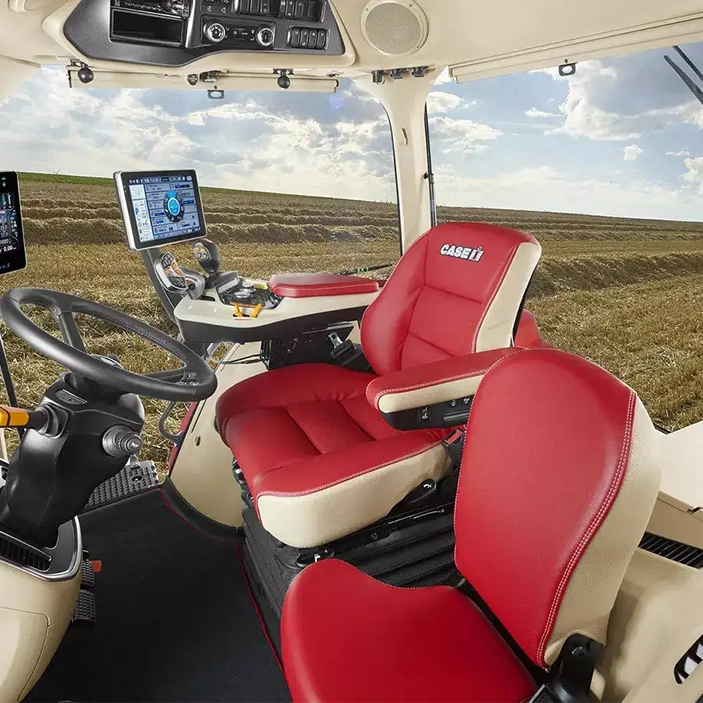

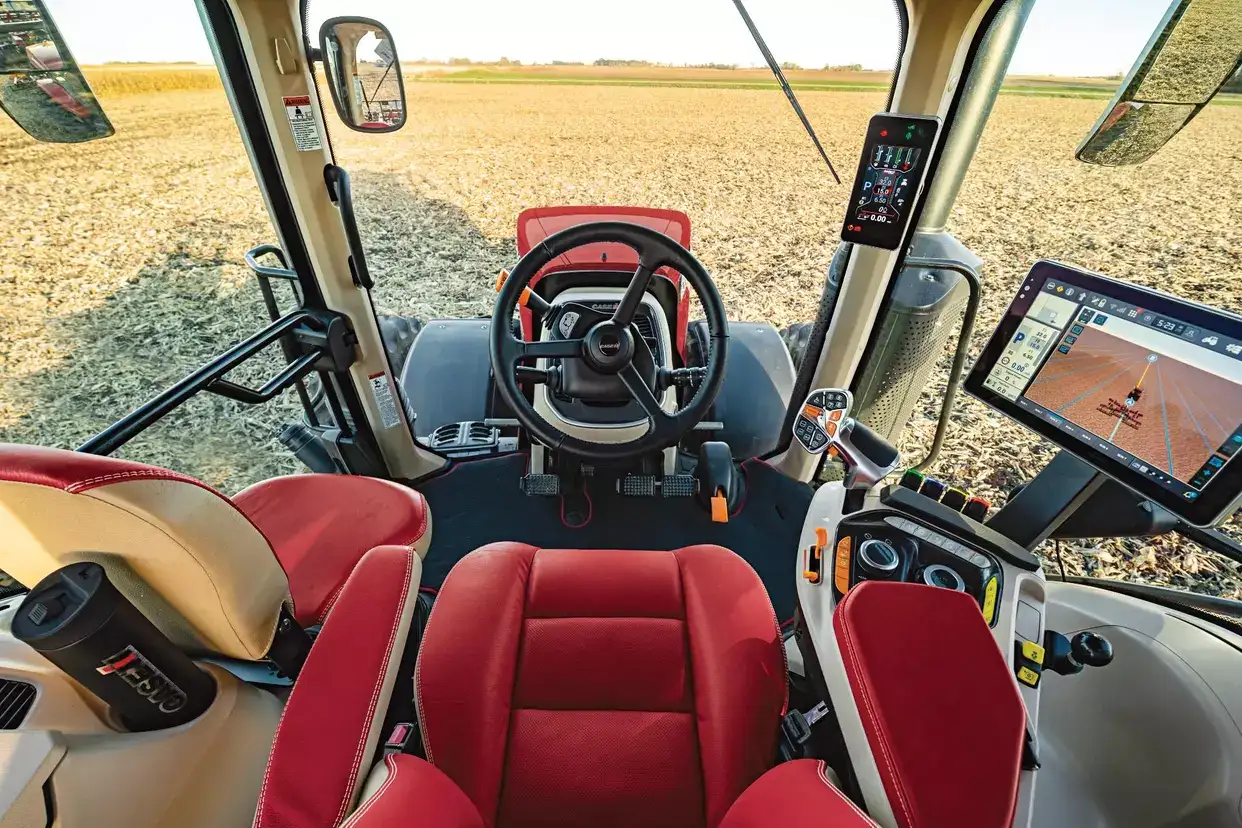

Operator environment
Multicontroller armrest
The new Multicontroller armrest features eight customizable buttons, along with a handle that includes four programmable buttons for remote valves and ISOBUS compatibility. It has a “Hotkey” for quick access to settings and an encoder knob for precise control. Additionally, it boasts illuminated, color-coded remote valve levers to enhance intuitive operation.
Operator comfort
New styling and high-quality material provide a luxury look and feel, while enhanced heating and air conditioning deliver operator comfort year-round.
Storage and visibility
Additional storage compartments, multiple cup holders, and numerous charging and data ports add to the operator experience, and a telescoping steering wheel and full-glass door with no center pillar improve visibility.
Surveyor cab
The advanced semi-active cab suspension in a Case IH Magnum Surveyor cab stabilizes front-to-back and up-and-down motions. It gives you a smoother ride whether on the road or in uneven terrain, reducing fatigue and increasing productivity.
Backlit buttons
Switching between functions is even simpler with the new Magnum control center. Different-sized buttons allow for a softer touch and enable you to tell them apart by touch alone.
Visibility
With 6.3 m² of glass in the cab, Magnum tractors provide an exclusive 360-degree field of vision, including an unobstructed view of the hitch. The sloped hood of the Magnum optimizes forward visibility.
Lights
In low-light conditions, visibility is not an issue, even for the outer row units of your largest planter. Magnum’s LED and HID lights let you easily make adjustments, refuel, or handle tasks anytime.
Heated and ventilated seat
Magnum offers an optional heated and ventilated red leather seat that ensures comfort during warm months by keeping you cool. When temperatures drop, the heated function helps relax tired muscles and keeps you warm. Additionally, the seat features an industry-leading swivel capability of 40°, providing an unobstructed view of the rear implement.
Engine
Field-Leading Power and Performance

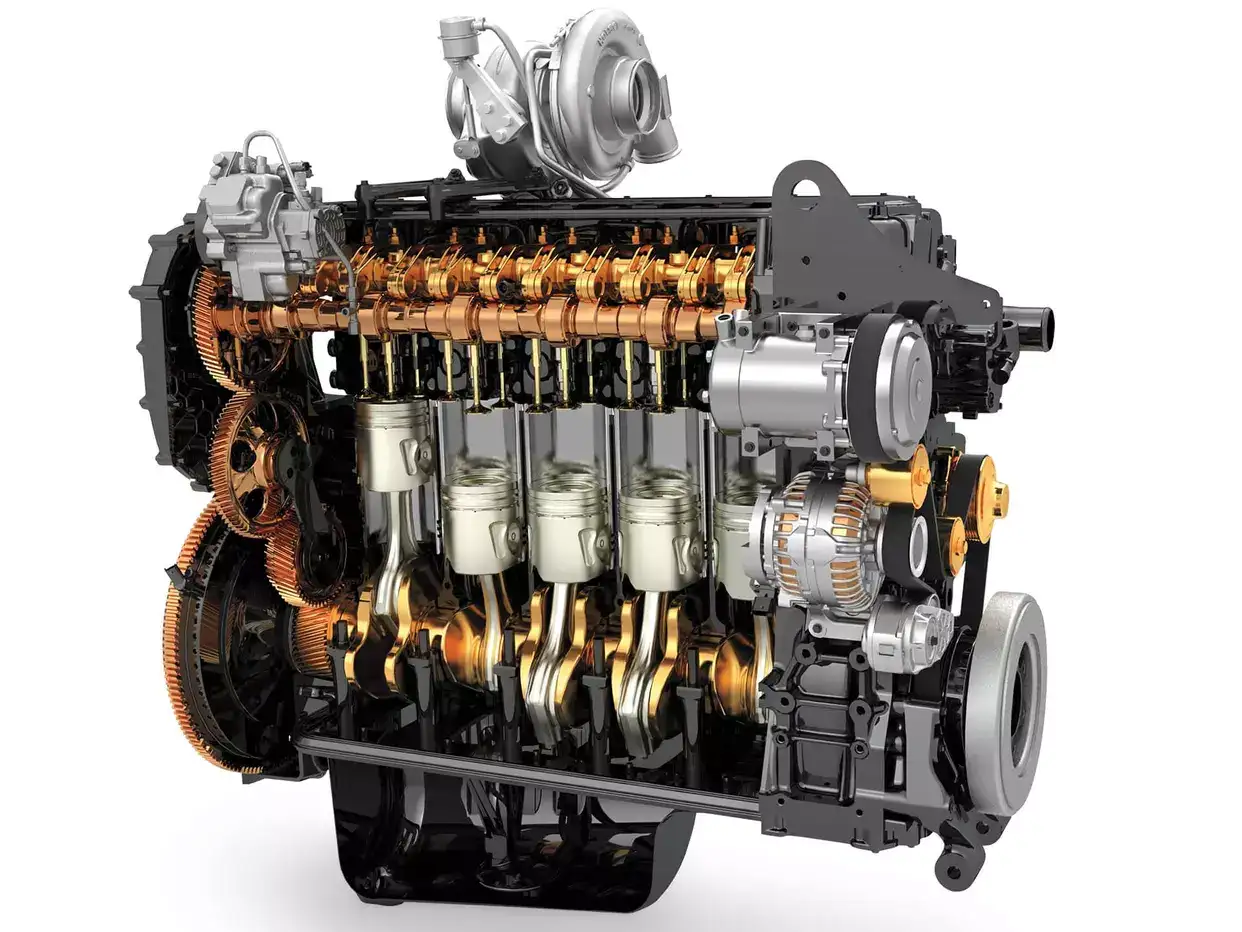

The Case IH Magnum™ tractor is equipped with 8.7L engines that provide exceptional horsepower while incorporating advanced emissions technology. For farmers in Uganda, this means maximum power, excellent fuel efficiency, and dependable performance even in the most challenging farming conditions.
Reliable and durable
Case IH FPT engines are developed and tested in Burr Ridge, Illinois. Our 8.7 L engines have clocked millions of hours on farms around the world, field-tested and proven in the conditions you face.
Power growth for tough operations
Case IH FPT engines deliver a power increase of up to 14%, ensuring you have the strength you need precisely when you need it. Additionally, they offer a power boost of up to 35 extra horsepower, allowing you to maintain speed and productivity during road travel or when using PTO applications.
Powerful and proven
Case IH’s Hi-eSCR2 technology offers exceptional fluid efficiency and power. The innovative SCR-on-Filter technology removes the need for extra components, such as the cooled exhaust gas recirculation (CEGR) system. This design helps keep maintenance costs low, allowing for oil changes every 600 hours.
Options for the way you work
Magnum engines offer innovations like engine braking, which reduces drivetrain wear and improves ma
Transmission
Today’s Magnum™ tractors are designed to make farming easier and more productive. With two industry-leading transmission options, farmers in Uganda get efficient power and smooth operation, keeping up with the demands of any agricultural task.
Hydraulic & Hitches
Strong, versatile hydraulics
Hydraulic flow can be configured to handle most any row-crop application and takes care of loader work too. Magnum tractors provide up to 282 l/min hydraulic flow so you can run at lower engine rpm for increased fuel efficiency without compromising operational performance. Choose between 4, 5 or 6 remote valves to match your machine requirement.
Hitches to handle more implements
Front Hitch: This option is available as a factory-installed feature on the 280–400 models, enabling you to handle a wider range of 3-point implement applications. The addition of a front PTO enhances the versatility of this option.
Rear Hitch: The rear hitch comes in Category 4N/3 or 3N/3 configurations, depending on the model, and offers a lift capacity of up to 11,700 kg.
Exterior
Attractive and Functional Exterior
Attractive and functional, stylistic components such as a tri-stripe decal and an updated grill help the Magnum™ series tractors stand apart from the crowd. Still, additional exterior features provide functional benefits and assist with visibility.
Exterior
- LED grill headlight option
- 360-degree egress lighting
- Four camera feeds are viewed on the AFS Pro 1200 display, with two cameras standard on the luxury cab configuration
- Telescoping mirrors are adjustable from the cab
- Semi-active cab suspension option
- Breakaway-style marker lights
- Tire pressure monitoring sensors
